Type mapping

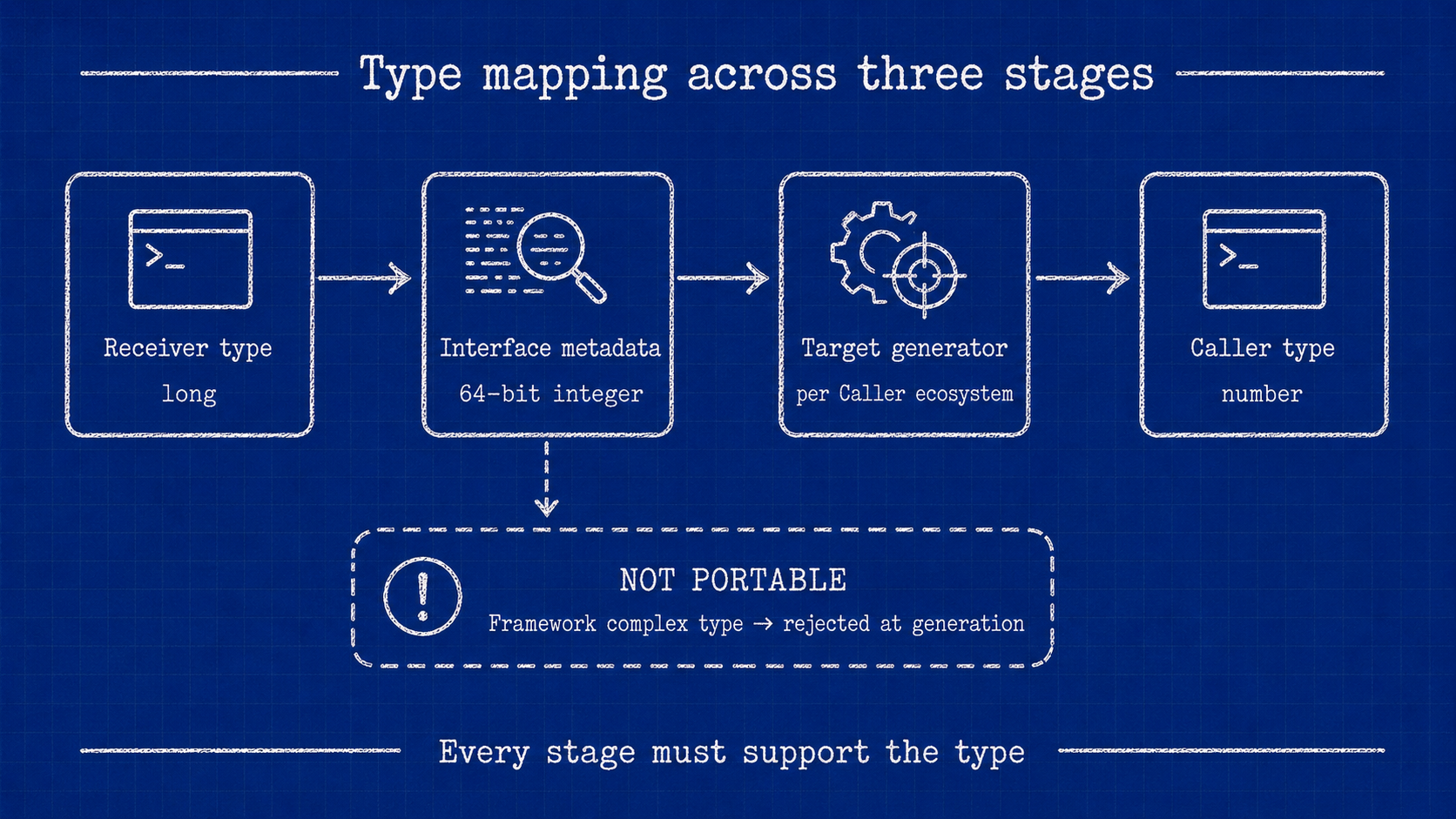

Type mapping occurs as Graftcode captures the Receiver's callable surface and generates the Caller package. Support is a property of that complete Receiver-to-Caller path—not just the source language.

Detailed mappings by target language

For generated TypeScript/JSDoc, current primitive mappings include:

• string and char → string;
• numeric primitive categories → number;
• boolean → boolean;
• void → void;
• nullable values → a union with null;
• Graft model types → generated class names.

For generated .NET, current mappings include:

• string → string;
• integer and unsigned integer → int;
• boolean → bool;
• float → float;
• byte → byte;
• char → char;
• long and unsigned long-long → long;
• double → double;
• nullable supported value types → ?;
• Graft model types → generated or known local types.

Unknown values can degrade to unknown in TypeScript or object in .NET, except where an unresolved local class is recognized.

Portable baselines for all generated Callers

Graftcode also supports Java/JVM, Python, PHP, and Ruby. Their conservative public-contract baselines are:

• Java/JVM: String, primitive numbers, boolean, plain Java objects, and homogeneous arrays.
• Python: str, int, float, bool, simply typed classes, and homogeneous list[T] values.
• PHP: string, int, float, bool, typed plain classes, and homogeneous sequential arrays.
• Ruby: String, Integer, Float, booleans, small value objects, and homogeneous Array values.

These are interoperability baselines, not exhaustive mappings. Framework collection interfaces, arbitrary non-parsable framework classes, and arbitrary inheritance hierarchies are not supported on the public surface. Boxed and nullable values, unions, enums, records, generics, and maps follow pair-specific rules.

Parsable framework types

Some framework types are parsable: they have a defined cross-runtime mapping (catalog in the Graftcode protocol). Examples include System.DateTime, System.Guid, System.Uri, selected java.time.* types, and datetime.datetime. They are not subject to the same opaque framework 422 rule as types such as System.Type or List<T> on a .NET public signature.

ISO-8601 strings are still the safest default when you need one contract for every Caller. When you use parsable types, generate the Caller package for each Receiver→Caller direction you ship and follow the emitted types in Vision. See Parsable framework types.

Async and deferred returns

Generated Caller methods may be synchronous, async, or return deferred types (Task, Promise, coroutines) based on Receiver signatures and UGM completion metadata—not only on whether the Receiver method was written with async. Parallel Hypertube invocation uses execute_async() / ExecuteAsync() where emitted. See Invocation lifecycle.

Runtime support and per-runtime notes

• Supported runtimes and package managers — which runtimes host Receiver code and act as Caller.
• Runtime-specific notes — per-runtime type and contract caveats.

Perl and Python 2.7 have no generated-package or type-mapping path.

Supported surface is stricter than discovery

Graftcode rejects many non-parsable library and framework types on the public surface—for example List<T> instead of an array, Stream, or arbitrary BCL classes. Requesting the Caller package then fails with HTTP 422. A type listed in Vision or Gateway therefore does not guarantee that Callers can install or use a generated package.

Use simple primitives, plain models, language arrays, parsable types, or string encodings for dates and IDs.

Collections, generics, callbacks, and nullability

Graftcode handles arrays (including byte[] / bytes buffers), nested types, and nullable metadata across documented pairs. Generics, delegates, and callbacks follow pair-specific or unsupported rules. See the matrix for the full breakdown.
